Brushed & Polished Metal Finish Services
Satin, hairline, and polished finishes — managed as part of your fabrication program, inspected to your spec.
What Is Brushed Metal Finishing?
Brushed finishing is a mechanical surface treatment that creates directional texture on metal surfaces using abrasive belts, pads, or brushes. The process produces fine, parallel lines, ranging from coarse linear grain to smooth satin to high-reflectivity mirror polish, depending on the abrasive grit and technique used.
The result serves both aesthetic and functional purposes. A brushed surface reduces glare, hides minor imperfections, resists visible fingerprints, and creates a consistent professional appearance across production batches. Surface roughness typically ranges from Ra 0.05 μm (mirror polish) to Ra 1.0 μm (coarse brush), measured and verified to your specification.
Brushing and polishing is one of several surface finishing options we offer as part of our integrated manufacturing programs. Unlike decorative coating processes that add material to the surface, brushing removes a thin layer, so it doesn’t change your part dimensions.
Brushed & Polished Finish Options
Whatever finish your parts need, from industrial coarse brush to decorative mirror polish, we manage the process and match your exact specification or sample.

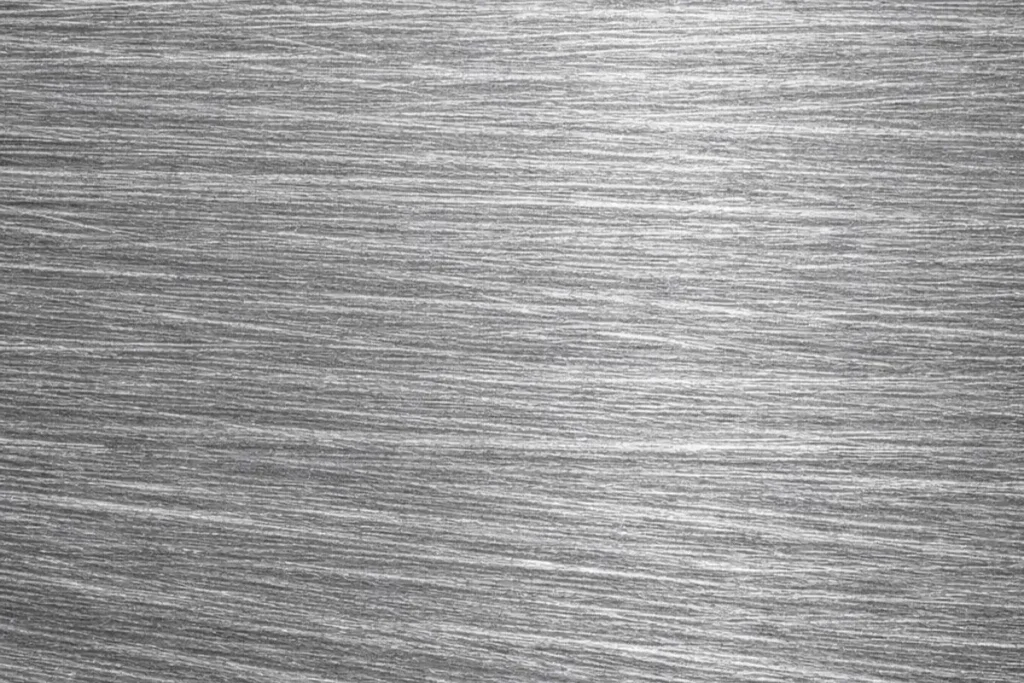

Coarse Brushed
Visible linear grain with a rough, industrial texture. Functional surface for parts where utilitarian appearance is acceptable.
Used for: Industrial equipment panels, structural covers
Ra 0.5–1.0 μm

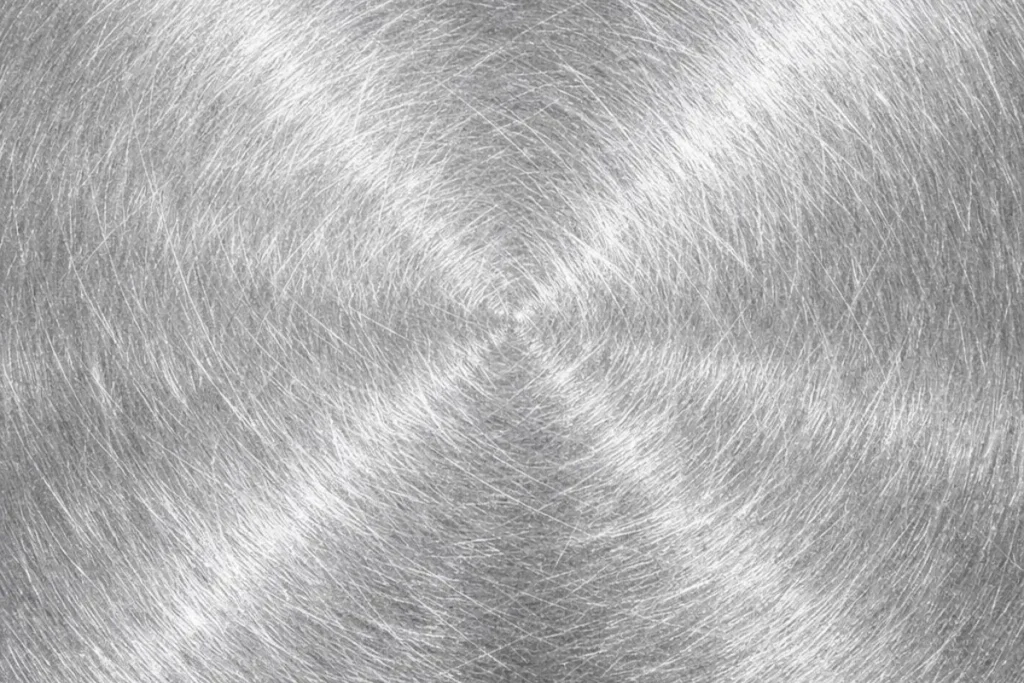

Standard Brushed
The most widely specified brushed finish. Non-directional grain produced by rotary polishing equipment. Industry standard for commercial and industrial applications.
Used for: Restaurant equipment, kitchen surfaces, elevator interiors
Ra ≤ 0.64 μm

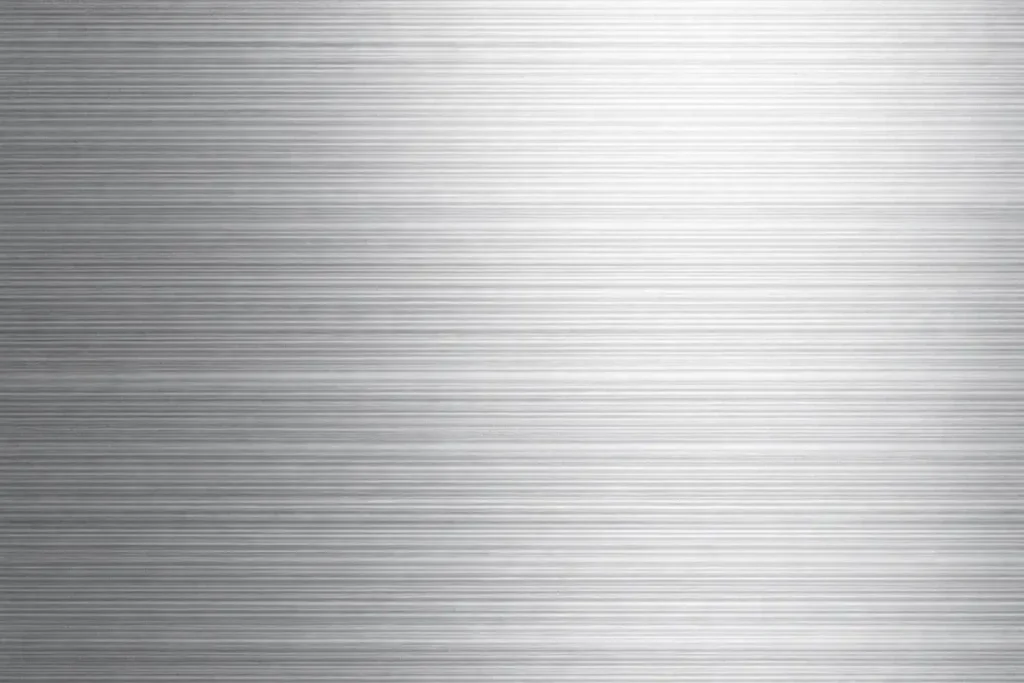

Hairline (HL)
Continuous, fine parallel lines produced by unidirectional grinding. Creates an elegant linear pattern resembling fine hair strands. Preferred for premium applications.
Used for: Appliance panels, HVAC enclosures, elevator doors, architectural cladding
Ra 0.2–1.0 μm

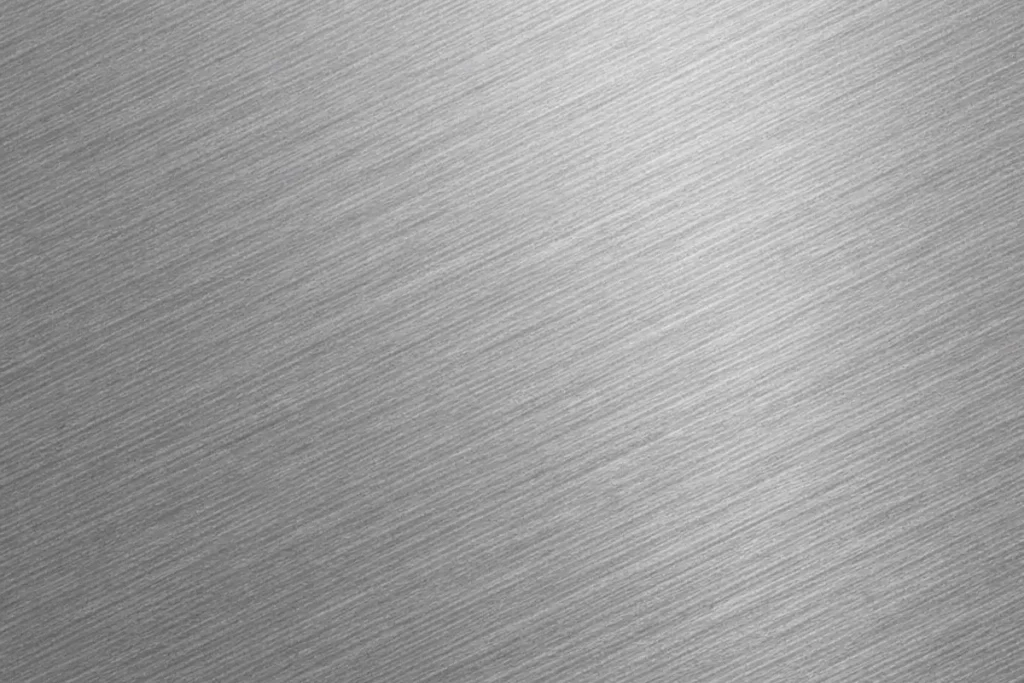

Fine Satin
Softer, low-reflectivity texture produced by Tampico brushing over a #4 base. Dull satin appearance with very fine directional lines.
Used for: Consumer electronics housings, control panels, low-glare surfaces
Ra 0.1–0.4 μm

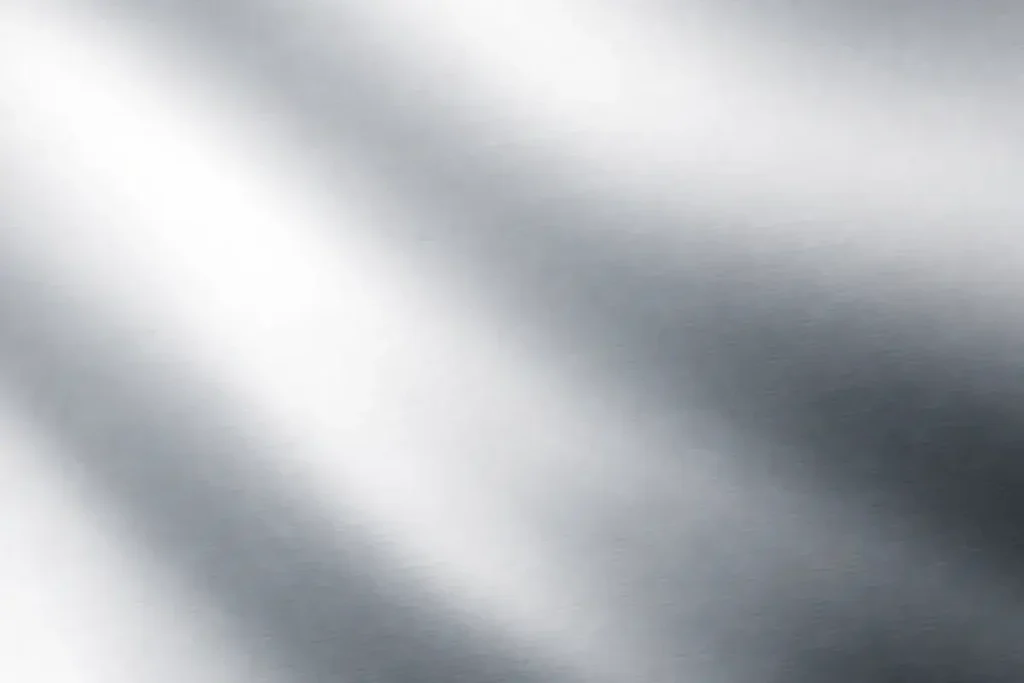

Mirror Polish (8K)
Highly reflective surface produced by progressively finer abrasives then buffing. Grit lines fully removed. The highest grade of polish available.
Used for: Decorative trim, press plates, food-grade equipment, reflective panels
Ra < 0.1 μm

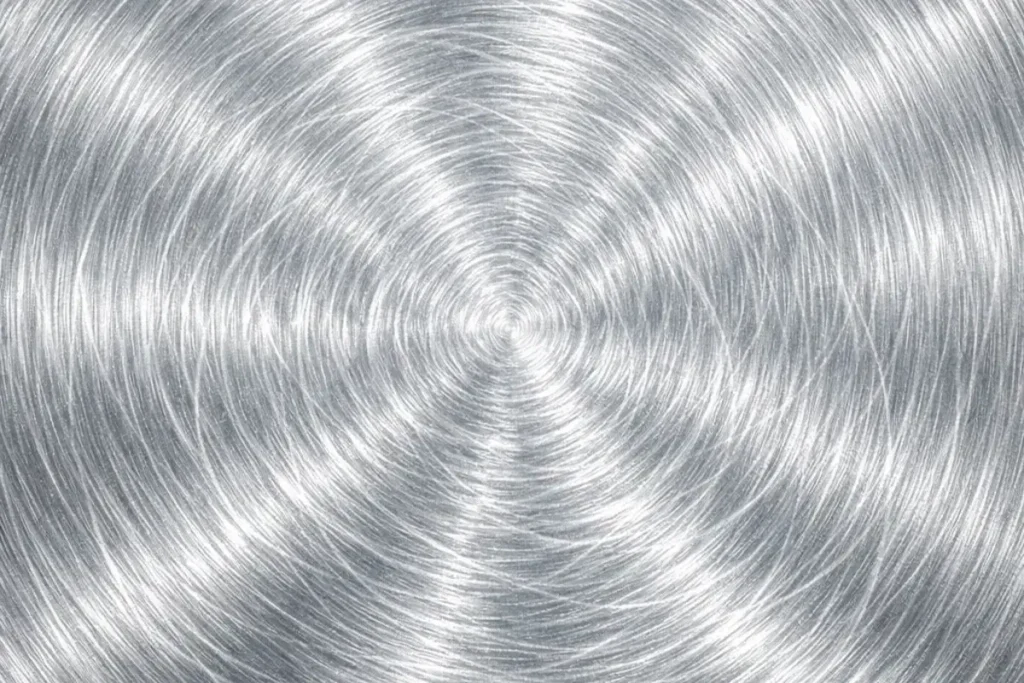

Circular Brush
Non-directional swirl pattern created by orbital brushing. Hides directional scratches and provides uniform appearance from any viewing angle.
Used for: Cookware, round enclosures, decorative covers
Varies by application
We maintain physical reference samples for each standard finish grade and can match custom specifications. Not sure which finish to specify? Talk to our engineering team →
Compatible Materials

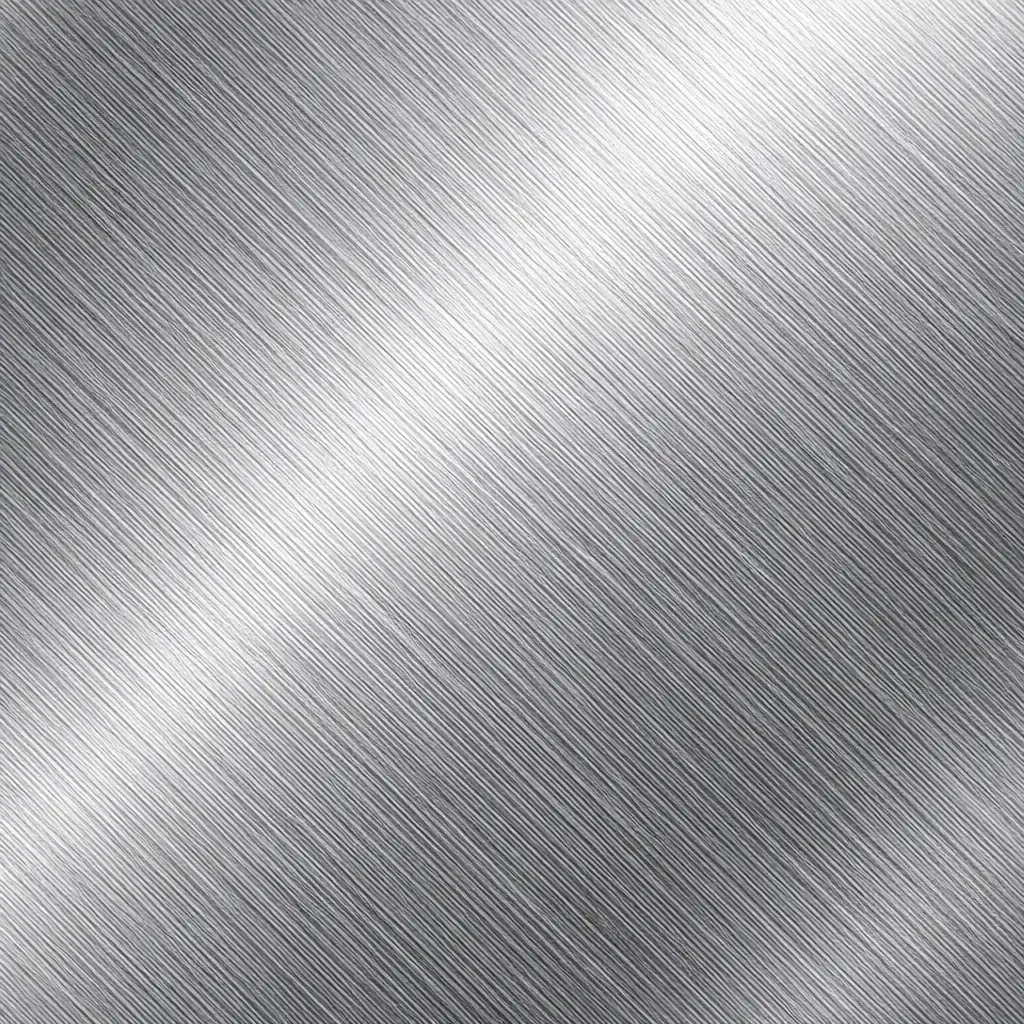

Stainless Steel
304 · 316 · 201
The most common substrate for brushed finishing. Stainless steel’s hardness produces clean, well-defined grain lines. #4 or HL hairline finish is the industry default for appliances, architectural panels, and HVAC components. Can be protected with anti-fingerprint (AFP) coating — a transparent nano-coating (2–8 μm) that resists smudges without changing appearance.

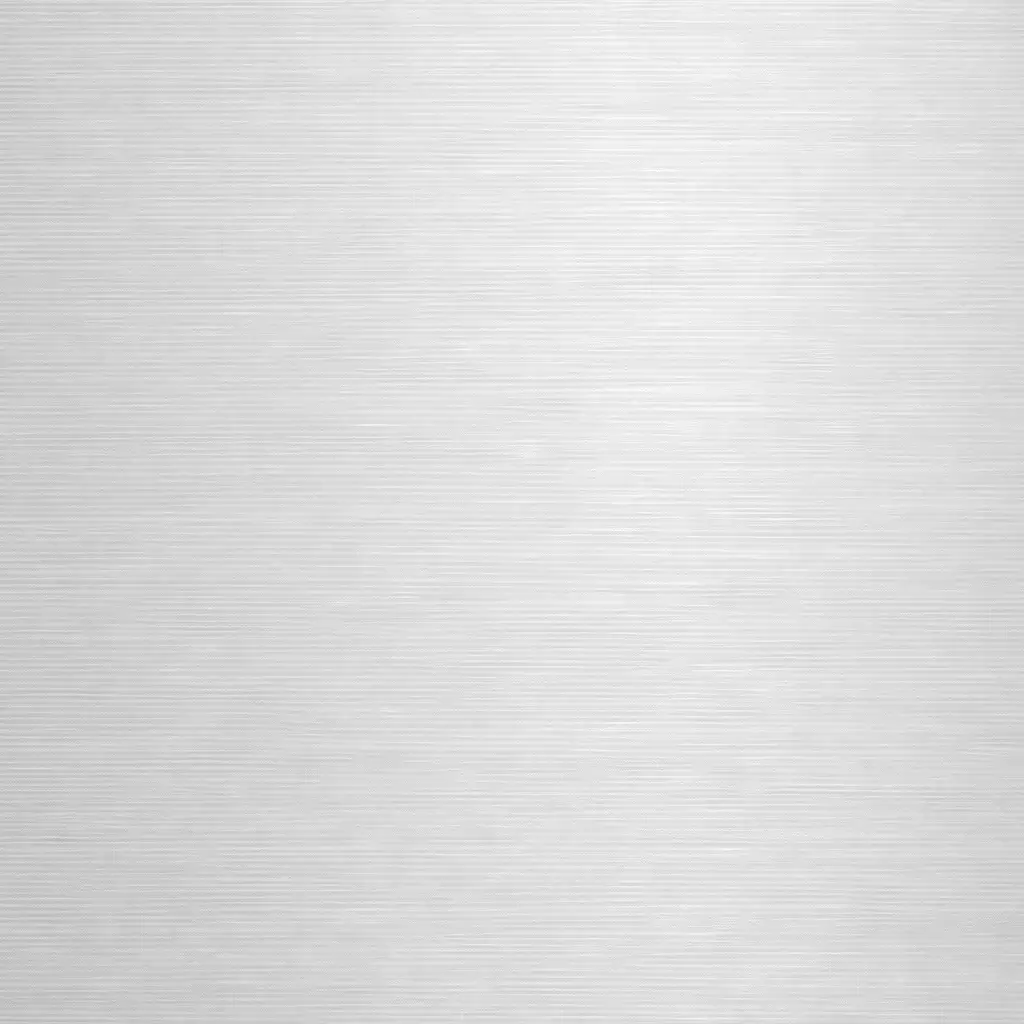

Aluminum
1000 · 3000 · 5000 · 6000 series
Softer than stainless, requiring lighter pressure and finer abrasives. Common in consumer electronics, signage, and automotive trim. Often combined with anodizing for corrosion protection, the anodized layer preserves the brushed texture while adding hardness.

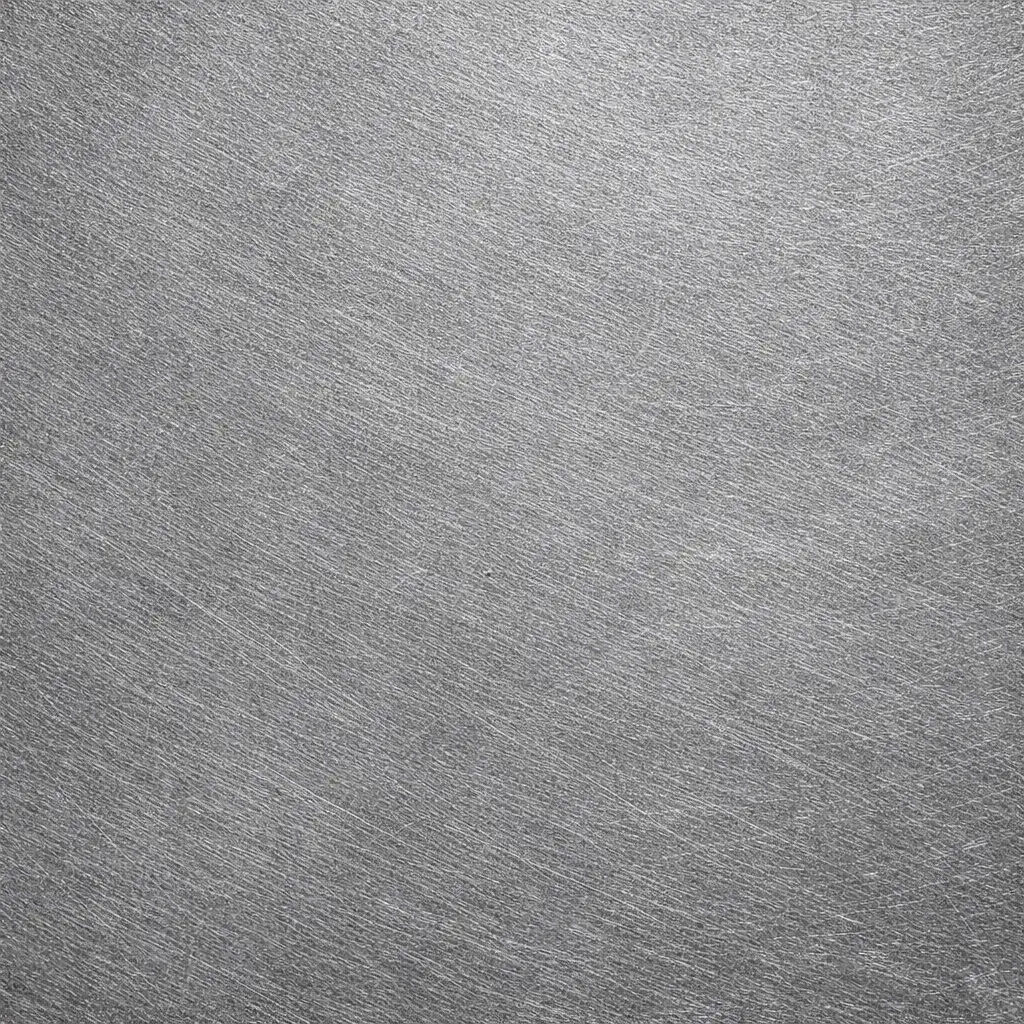

Carbon Steel
SPCC · SECC
Typically brushed as surface preparation before painting or powder coating, rather than as a final decorative finish. Brushing creates a uniform surface profile that improves coating adhesion and consistency.

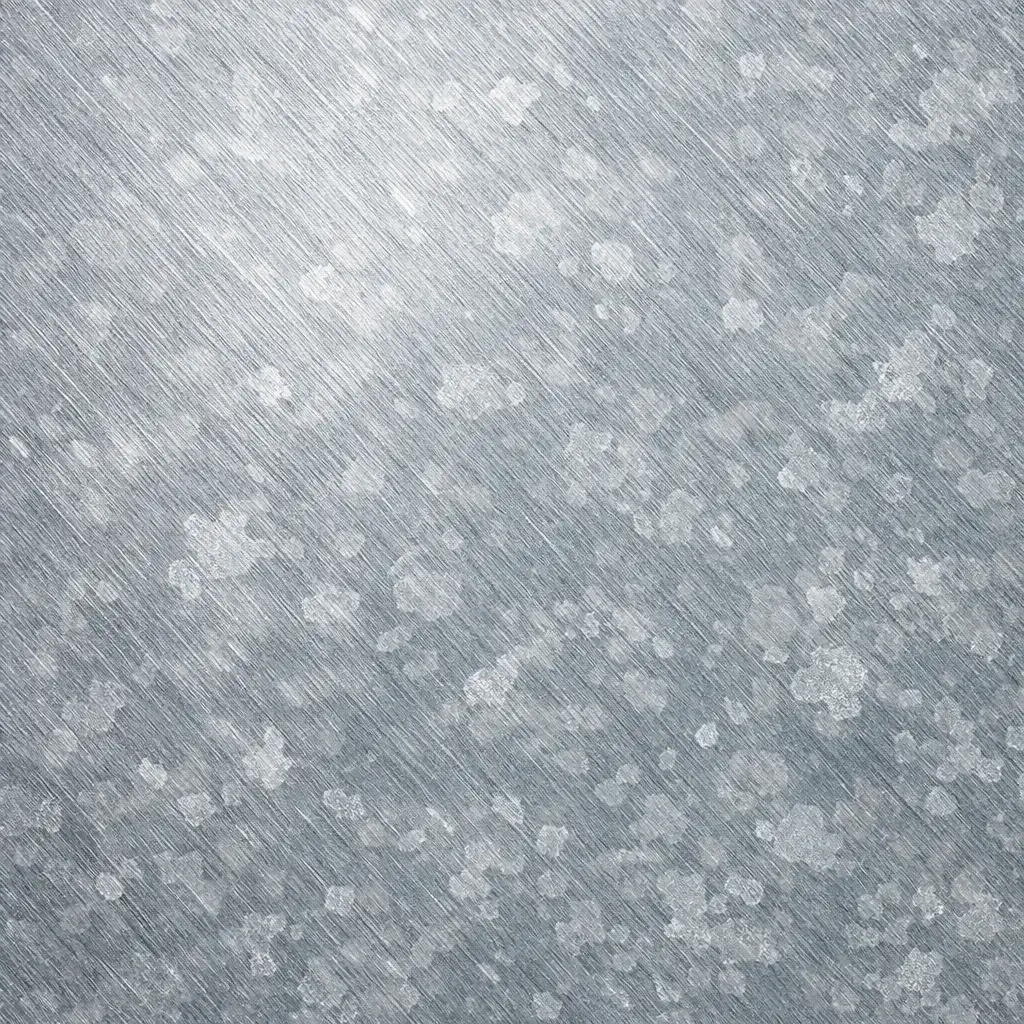

Galvanized Steel
SGCC
Less common but used for specific visual effects. The zinc layer is thin, so light-pressure techniques are required to preserve corrosion protection. Suitable for decorative applications where galvanized base is required.
How We Deliver Consistent Finish Quality
Brushing and polishing are performed by our vetted finishing partners. What we don’t outsource is accountability. Every batch is inspected at our facility before it ships.
Specification Review
Finish grade, grain direction, Ra target, reference sample, and acceptance criteria — documented during DFM review.
Partner Routing
Parts routed to the most qualified finishing partner for your specific material and finish type.
In-House Inspection
Finished parts return to our facility for incoming quality inspection using calibrated instruments.
Final Approval & Ship
Parts meeting spec are approved and packaged. Non-conforming parts return for rework before you see them.
ZAK In-House QC Instruments
Calibrated instruments used on every returning batch
Gloss Meter
Measures surface gloss level (GU) to verify polish consistency across parts and batches.
Color Difference Meter
Measures ΔE value to confirm tone and color uniformity — critical for multi-part assemblies.
Visual Comparison
Grain direction, pattern consistency, and surface defect inspection under controlled lighting.
Design Considerations for Brushed & Polished Parts
A few design decisions early in the process determine whether your brushed finish meets expectations.
Specify grain direction
Brushed finishes have a visible grain. Specify direction relative to a datum or feature on your drawing to ensure consistency across batches.
Prepare surfaces before brushing
Brushing amplifies underlying defects. Address scratches, dents, and weld marks first. See our deburring & weld finishing process.
Avoid tight radii on brushed surfaces
Abrasive belts can't follow sharp bends uniformly. Specify minimum 3mm internal radius where brushed finish is required on formed surfaces.
Identify masking areas
Specify surfaces that should NOT be brushed — mating surfaces, seal areas, threaded holes. Include masking requirements on your drawing.
Consider post-brushing protection
Brushed stainless steel fingerprints easily. Specify AFP coating (2–8 μm transparent nano-coating) or protective film for consumer-facing parts.
Specify a standard, not just "brushed"
Reference ASTM A480 No.4, GB/T 3280 HL, JIS G4305 — or provide a physical sample. We maintain reference samples for matching.
Plan grain continuity across assemblies
Side-by-side brushed panels must be brushed in the same direction and ideally the same production batch. Specify this on your assembly drawing.
Consider material thickness
Very thin sheet (below 0.5mm) can distort during aggressive brushing. Lighter methods or support fixturing may be needed.
Upload your drawing for a free DFM review, including finish recommendations from our engineering team.
Brushing vs. Other Finishing Options
Brushing isn’t always the right answer. Here’s how it compares to other surface finishes we offer.
| Factor | Brushing / Polishing | Powder Coating | Anodizing | Electroplating |
|---|---|---|---|---|
| Primary purpose | Aesthetic texture, fingerprint resistance | Color, corrosion, UV protection | Corrosion resistance, color (aluminum) | Conductivity, wear, corrosion |
| Best for | Visible stainless/aluminum surfaces | Panels, enclosures, structural parts | Aluminum housings, consumer products | Functional metal-on-metal |
| Adds thickness? | No (removes material) | Yes (60–120 μm) | Yes (5–25 μm Type II) | Yes (5–25 μm typical) |
| Corrosion protection | Minimal (stainless inherent) | High | High | Medium–High |
| Cost | Low–Medium | Low | Medium | Medium–High |
| Typical materials | SS, aluminum, brass | Steel, aluminum | Aluminum only | Steel, copper, brass |
Many applications combine finishes — brushing + coating, or brushing as prep before anodizing.
Where Brushed Finishes Are Used
HVAC & Appliances
Control panels, exterior housing panels, and stainless steel trim on commercial HVAC units. #4 and HL hairline finishes are the industry standard.
Consumer Products
Visible metal components on premium products — housings, bezels, decorative trim. Brushed or satin finishes convey quality without mirror-polish maintenance.
Automotive
Interior trim panels, decorative accents, and anti-glare functional components. Automotive-grade under IATF 16949.
Industrial Equipment
Control panels, operator interface housings, and equipment enclosures. Brushed finish hides handling marks during installation and field service.
Electrical & Electronics
Enclosures and chassis requiring both EMI shielding and professional appearance. Brushed aluminum common for rack-mount and electrical cabinets.
Energy
Solar mounting frames, battery enclosures, and charging infrastructure components. Brushed stainless and aluminum offer weather resistance and professional appearance for outdoor equipment.
Frequently Asked Questions
Common questions from our clients worldwide evaluating our tooling capabilities.
What's the difference between a #4 finish and hairline (HL)?
Both are brushed finishes, but they’re produced differently. #4 uses rotary polishing to create shorter, non-linear grain marks (Ra up to 0.64 μm per ASTM A480). HL uses linear grinding with 150–320 grit for long, continuous parallel lines. HL has a more refined, unidirectional appearance, preferred for appliance panels and elevator doors. We offer both as separate options.
Can you brush formed and welded parts?
Yes, provided the welds are properly ground and blended first. Our deburring and weld finishing process prepares parts for brushing. Class A weld finishing is recommended for parts that will receive a visible brushed finish.
What's the maximum part size for brushing?
Flat sheet up to 1,500mm × 3,000mm can be processed on automated lines. Formed and 3D parts are finished with semi-automatic or manual methods. Contact our engineering team to confirm feasibility for your specific geometry.
How do you ensure consistency across large batches?
Specification documentation at the DFM stage, standardized physical reference samples, and incoming inspection with calibrated instruments (gloss meter WGG60-Y4, color difference meter CR-400). For critical cosmetic parts, we implement statistical sampling plans per your requirements.
Can brushed parts be further treated?
Yes. Common post-brushing treatments include anti-fingerprint coating (AFP — a 2–8 μm transparent nano-coating for stainless steel), anodizing (for aluminum), passivation (for corrosion resistance), and clear lacquer (for brass and copper). We coordinate the full finish stack as part of your project.
How should I specify a brushed finish on my drawing?
Reference an industry standard — ASTM A480 No.4, GB/T 3280 HL, or JIS G4305 — or provide a physical sample. Include grain direction relative to a datum feature. Our engineering team can help you define the specification if needed.
What's the lead time impact of adding a brushed finish?
Typically 2–5 business days added to the production timeline, depending on finish type, quantity, and current partner capacity. We confirm the timeline in your project quote.
Related Capabilities
Get the Right Finish for Your Parts
Whether you need a standard #4 brushed surface, a fine hairline texture, or an 8K mirror polish, our engineering team will help you specify the right finish and deliver it as part of your complete project.
