Sheet metal fabrication turns flat metal into real parts: enclosures, brackets, panels, cabinets, frames, and assemblies.

From the outside, the process can look simple.

Cut the blank. Bend the part. Weld where needed. Add the finish. Ship it.

But in real production, every step affects cost, tolerance, appearance, strength, and lead time.

At ZAK, we treat fabrication as a controlled workflow, not a set of disconnected shop-floor tasks. A good sheet metal fabrication project starts with design review and ends with inspection, packaging, and clear records.

When the drawing, material, tolerance, finish, and assembly requirements are aligned early, production becomes easier to control. The parts are also more likely to arrive consistent from batch to batch.

This guide walks through the sheet metal fabrication process step by step. It is written for engineers, procurement teams, OEM brands, and buyers who want to understand what happens between a CAD file and a finished metal part.

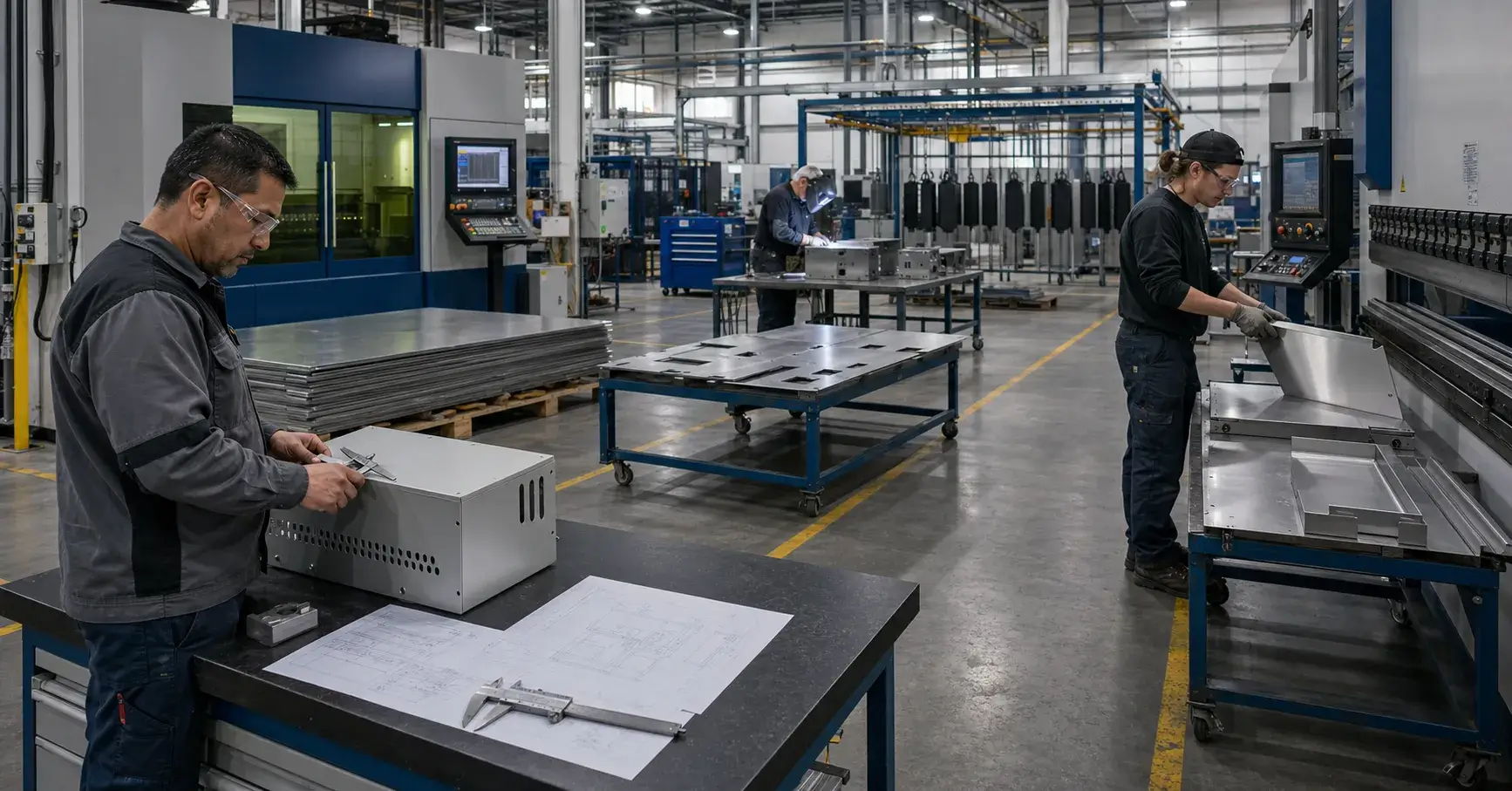

What Is Sheet Metal Fabrication?

Sheet metal fabrication is the manufacturing process[^1] of cutting, forming, joining, finishing, and assembling sheet metal into usable parts.

Common materials include carbon steel, stainless steel, aluminum, galvanized steel, brass, and copper.

The best material is not always the cheapest one. It depends on strength, corrosion resistance, weight, conductivity, appearance, and cost.

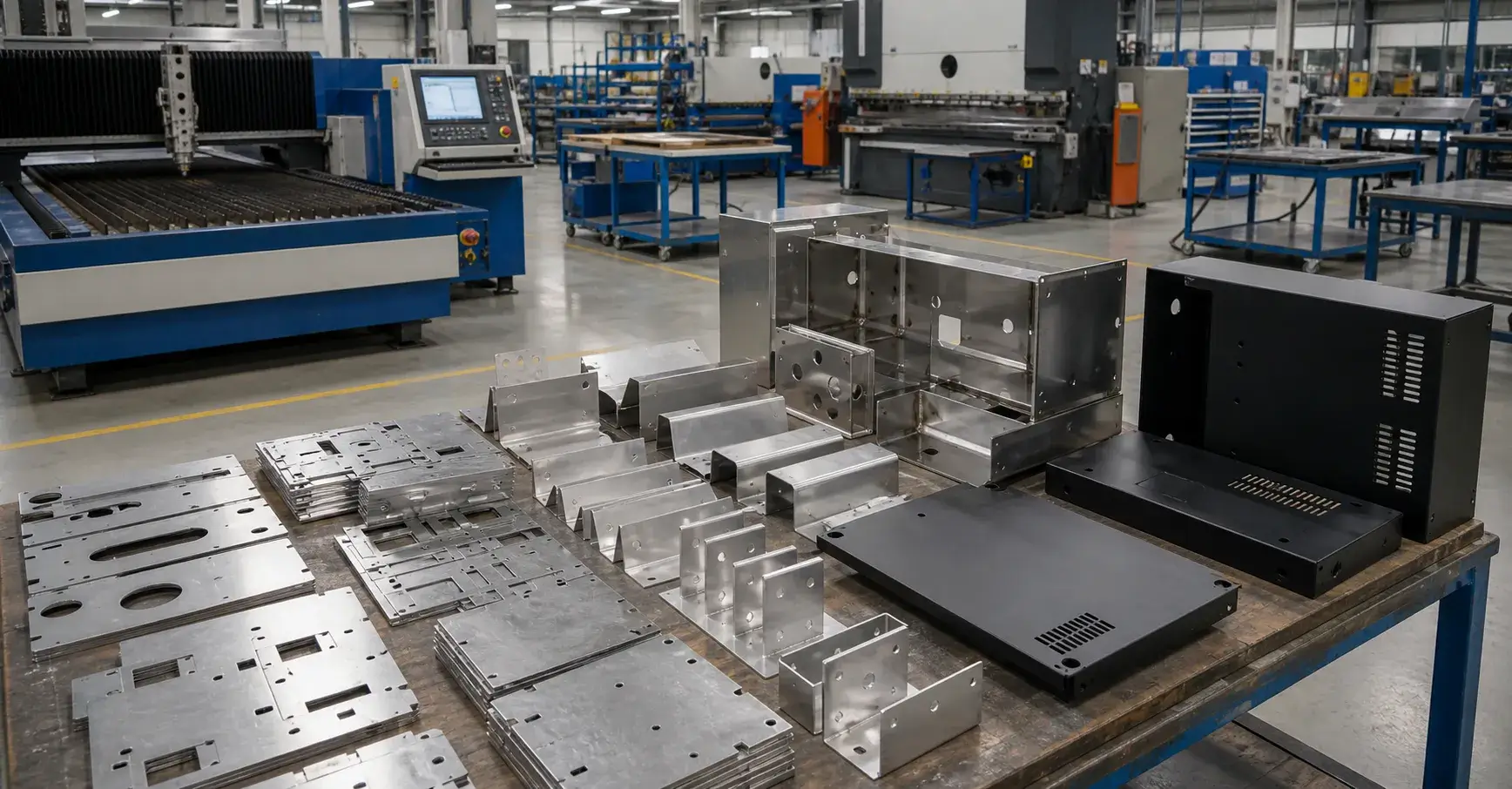

Most custom projects follow the same basic path:

Process stage	Main purpose	Common buyer concern
Drawing review	Confirm design, material, tolerance, and finish	Is the part manufacturable?
Cutting	Create the flat blank or cut features	Will the edges and holes meet the drawing?
Forming	Bend or shape the blank	Will the final dimensions remain stable?
Welding or joining	Connect parts into an assembly	Will the joint be strong and clean?
Surface finishing	Improve appearance, corrosion resistance, or function	Will the coating match the use environment?
Inspection	Check dimensions, surface, and assembly	Will parts be consistent across the batch?
Packing and shipping	Protect parts during transport	Will parts arrive without damage?

The details change by part type.

A simple flat bracket may need only laser cutting, deburring, and plating.

A control cabinet may need cutting, bending, welding, grinding, powder coating, gasket installation, assembly, and final inspection.

Step 1: Design Review and DFM

The first step is not cutting metal.

It is reviewing the drawing.

Design for manufacturability, often called DFM, checks whether the part can be produced reliably with the chosen material, thickness, tolerance, bend geometry, and finish.

That sounds basic. It is not.

Sheet metal design guidance[^2] often focuses on bend radius, feature placement, tolerance, and file preparation because these choices decide whether a part can be made cleanly.

This review helps reduce rework before production starts. It also helps buyers avoid hidden cost drivers that only appear after the job reaches the shop floor.

Important DFM checks include:

• Material grade and thickness
• Bend radius and bend direction
• Hole size and distance from bends
• Slot and cutout geometry
• Inside corner radius
• Tolerance stack-up across bends and assemblies
• Weld access and distortion risk
• Surface finish requirements
• Masking areas for powder coating or plating
• Drawing version and revision control

A common mistake is requesting tight tolerances on every dimension.

Tight tolerances are sometimes necessary. They matter for mating parts, enclosure fit, and assembly interfaces.

But when every dimension is marked as critical, cost rises. Lead time can also increase.

The better move is simple: identify the dimensions that control fit and function, then allow standard fabrication tolerance where possible.

For quoting, buyers should send 2D drawings in PDF format and 3D files when available.

STEP files help with geometry review. DWG or DXF files help with flat cutting.

A complete RFQ package should also include material, thickness, quantity, finish, inspection needs, and any assembly notes.

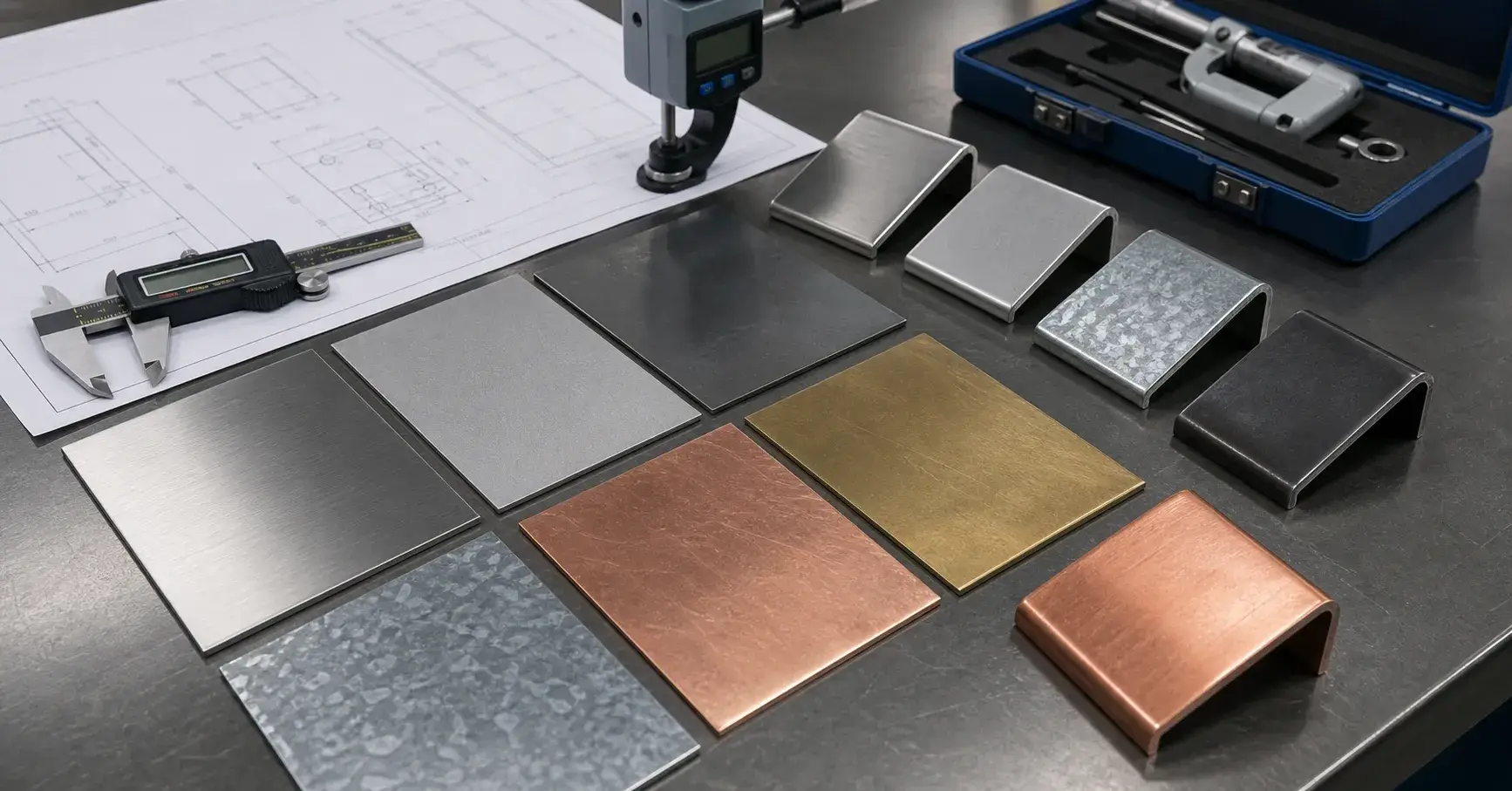

Step 2: Material Selection

Material choice affects almost every later step.

Stainless steel resists corrosion, but it can be harder to cut, form, and finish than mild steel.

Aluminum is light and corrosion resistant, but it needs careful welding and bend planning.

Carbon steel is strong and cost-effective, but it often needs coating or plating for corrosion protection.

So the practical question is not "Which metal is cheapest?"

It is "Which metal fits the job?"

For example:

• Outdoor electrical enclosures may need stainless steel, aluminum, or powder-coated galvanized steel.
• Industrial machine guards often use carbon steel with powder coating.
• Lightweight panels may use aluminum.
• Food, medical, or washdown equipment may need stainless steel.
• Conductive parts may require copper or brass.

Material availability also affects lead time.

Common sheet thicknesses are easier to source. Special grades, unusual thicknesses, or certified material traceability can extend the schedule.

If a project has a fixed launch date, confirm material availability before locking the design.

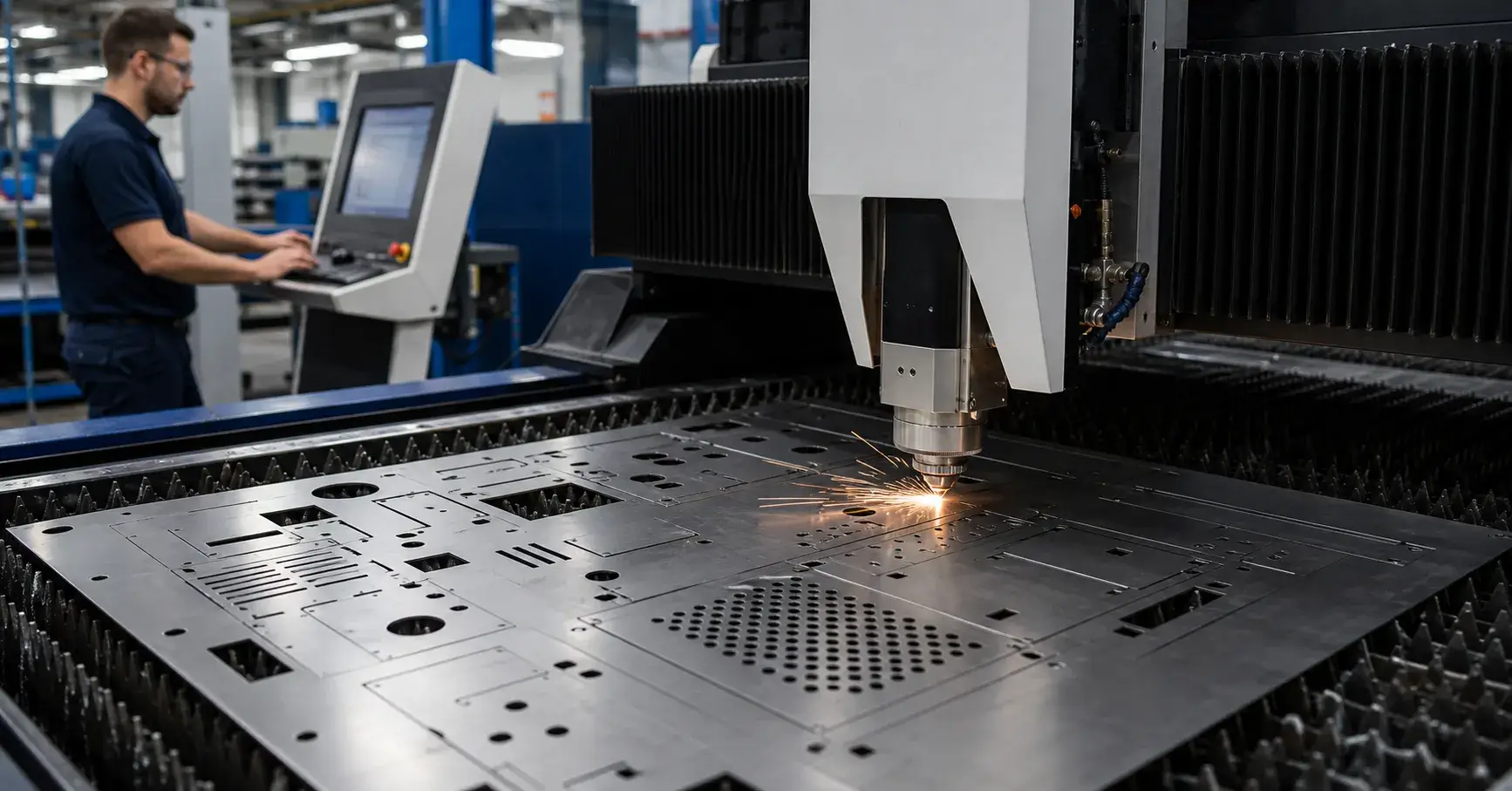

Step 3: Cutting the Sheet

Cutting creates the flat blank.

It also creates holes, slots, notches, vents, logos, and internal features.

Common sheet metal cutting methods include laser cutting, punching, shearing, plasma cutting, and waterjet cutting.

For custom sheet metal parts, laser cutting is often the most flexible option.

It supports complex profiles, quick changeover, and clean edges on many metals. Industrial laser cutting[^3] is widely used because it can process detailed profiles directly from digital files, especially when part mix and design changes are common.

At ZAK, we use precision laser cutting for many sheet metal components because it fits prototypes, small batches, and production runs.

It also helps reduce tooling cost when the design is still changing.

Cutting quality depends on laser power, material behavior, assist gas, cutting speed, and the machine setup; laser-material interaction[^4] is one reason different metals and thicknesses need different process settings.

Cutting quality also depends on:

• Material type and thickness
• Machine power and cutting parameters
• Kerf width
• Heat-affected zone
• Edge burr
• Hole size relative to thickness
• Nesting plan
• Drawing accuracy

Small features deserve a close look.

Very small holes, narrow slots, sharp internal corners, and dense perforation patterns can slow production or require design changes.

If the part will be bent later, hole placement near bend lines must be reviewed before cutting.

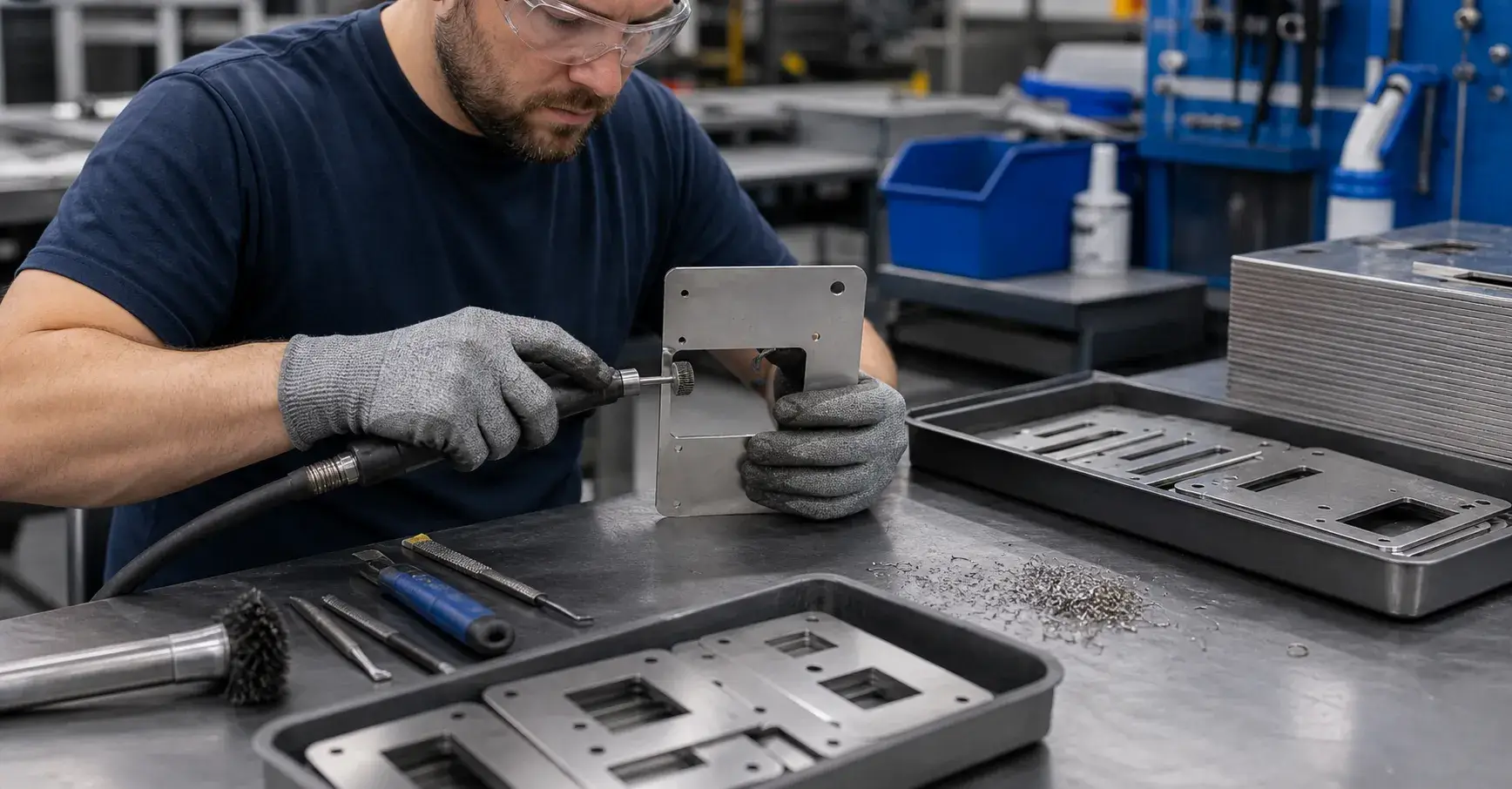

Step 4: Deburring and Edge Preparation

After cutting, parts often need deburring.

Burrs are sharp raised edges left from cutting or punching. They can affect safety, assembly, coating, and appearance.

Deburring can be manual or mechanical.

The right method depends on part size, material, edge condition, and cosmetic requirements.

For visible parts, edge preparation may be more controlled. For internal brackets, the requirement may be simple safe handling and coating readiness.

Edge preparation is easy to overlook in RFQs.

Buyers should state whether edges must be "free of sharp burrs," "smooth to touch," or finished to a specific cosmetic level.

This matters when parts are handled by workers, installed by end users, or assembled near wiring and seals.

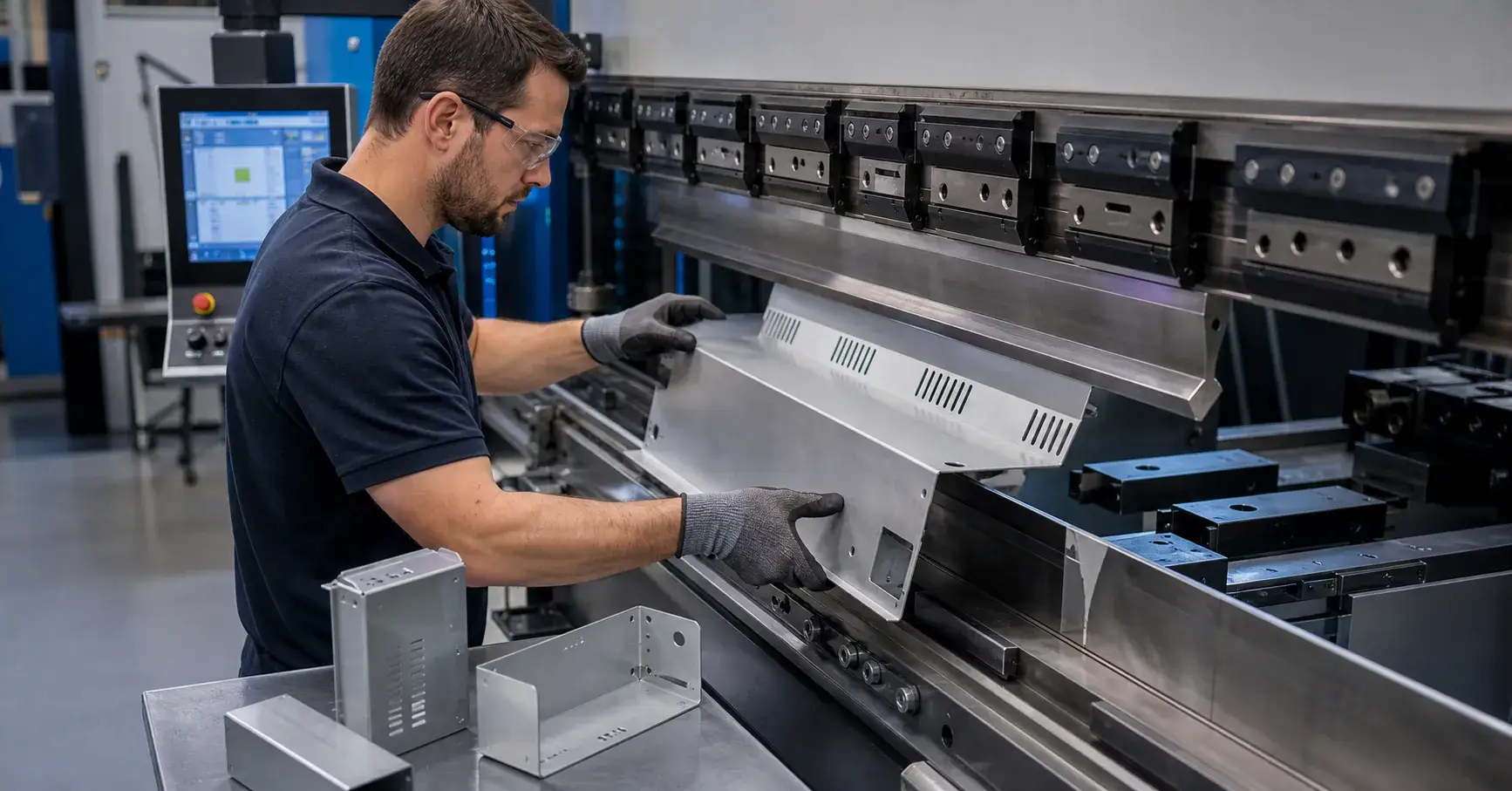

Step 5: Bending and Forming

Bending turns a flat blank into a 3D part.

Press brake bending is one of the most common forming methods for custom sheet metal. The machine uses a punch and die to form the sheet to a target angle.

Good sheet metal bending depends on material thickness, grain direction, tooling, bend radius, flange length, and springback.

Springback means the metal tries to return slightly after forming.

Stainless steel and aluminum can behave differently from carbon steel, so process settings must match the material.

The bend radius should not be an afterthought.

If the inside radius is too small for the material and thickness, the part may crack.

If the radius changes during production, the developed flat pattern may also change. That can affect hole positions, overall length, and assembly fit.

Practical bending rules include:

• Keep holes and slots away from bend lines when possible.
• Use consistent bend radii across a part when the design allows it.
• Avoid very short flanges unless the tooling can support them.
• Confirm whether cosmetic faces need protection from tooling marks.
• Mark critical bend angles and mating dimensions clearly on the drawing.

For complex parts, our team checks the bend sequence before production.

A part may look possible in CAD and still be difficult to bend if one flange blocks the next operation.

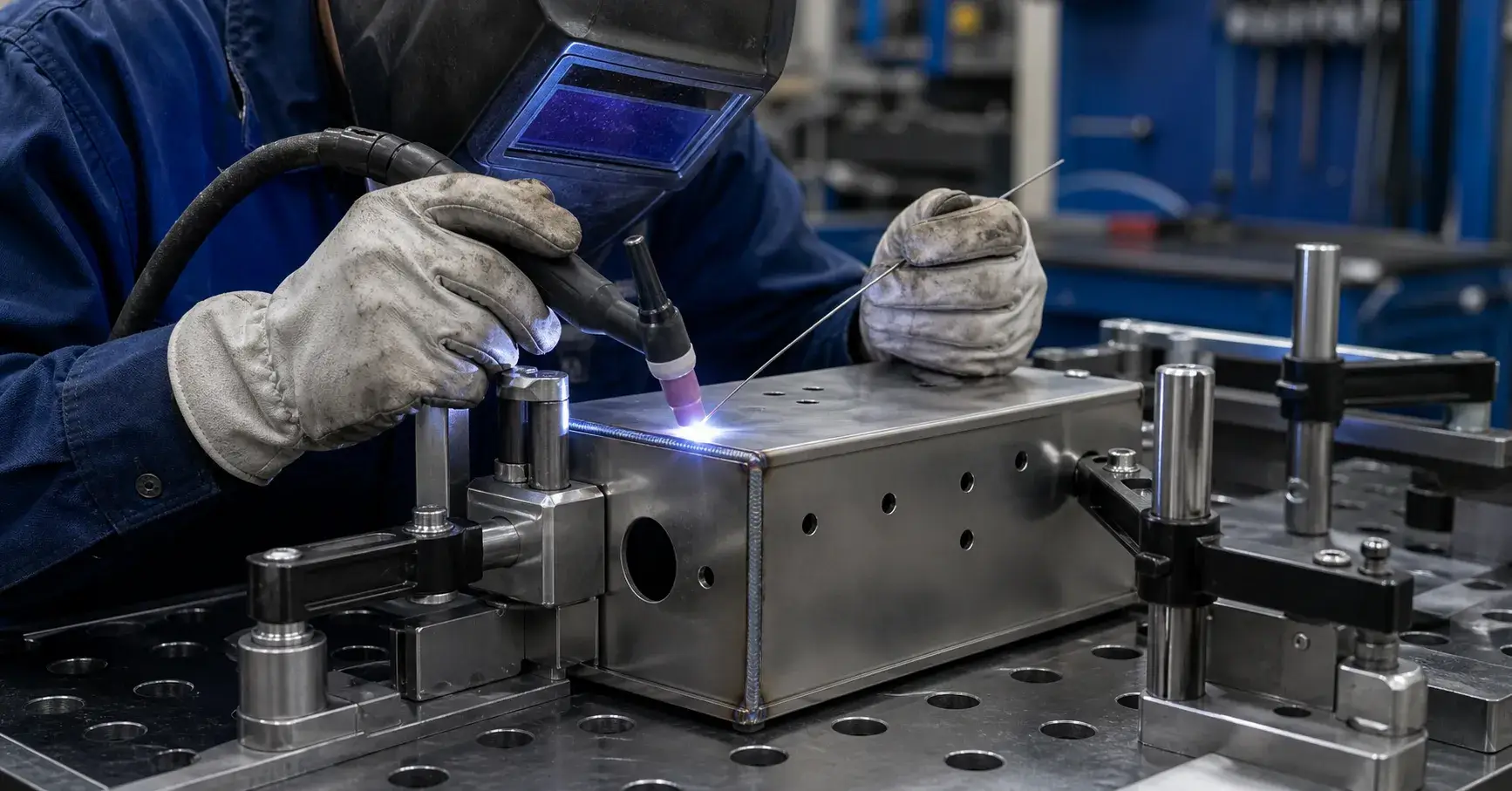

Step 6: Welding and Joining

Some sheet metal parts are single-piece bent components.

Others require welding, riveting, fastening, clinching, spot welding, threaded inserts, or hardware installation.

Welding is common for enclosures, frames, cabinets, brackets, trays, and assemblies.

MIG welding, TIG welding, spot welding, and stud welding may all be used depending on the material, thickness, strength requirement, and appearance needs. Welding joins materials[^5] by using heat, pressure, or both, and the right process depends on the joint and application.

At ZAK, sheet metal welding is reviewed for strength, distortion, and surface requirements.

Thin sheet metal can warp if heat input is not controlled. Stainless steel can discolor near the weld. Aluminum welding needs clean preparation and suitable filler material.

For regulated or high-risk projects, buyers may also need to confirm the applicable welding codes and standards[^6] before production.

Buyers should clarify:

• Weld type and location
• Weld size or strength requirement
• Cosmetic weld grinding
• Leak or sealing requirement
• Visible and non-visible surfaces
• Inspection requirement
• Whether hardware or inserts must be installed before finishing

If a welded part will be powder coated, the weld area must be prepared well.

Poor grinding, gaps, spatter, or contamination can show through the coating.

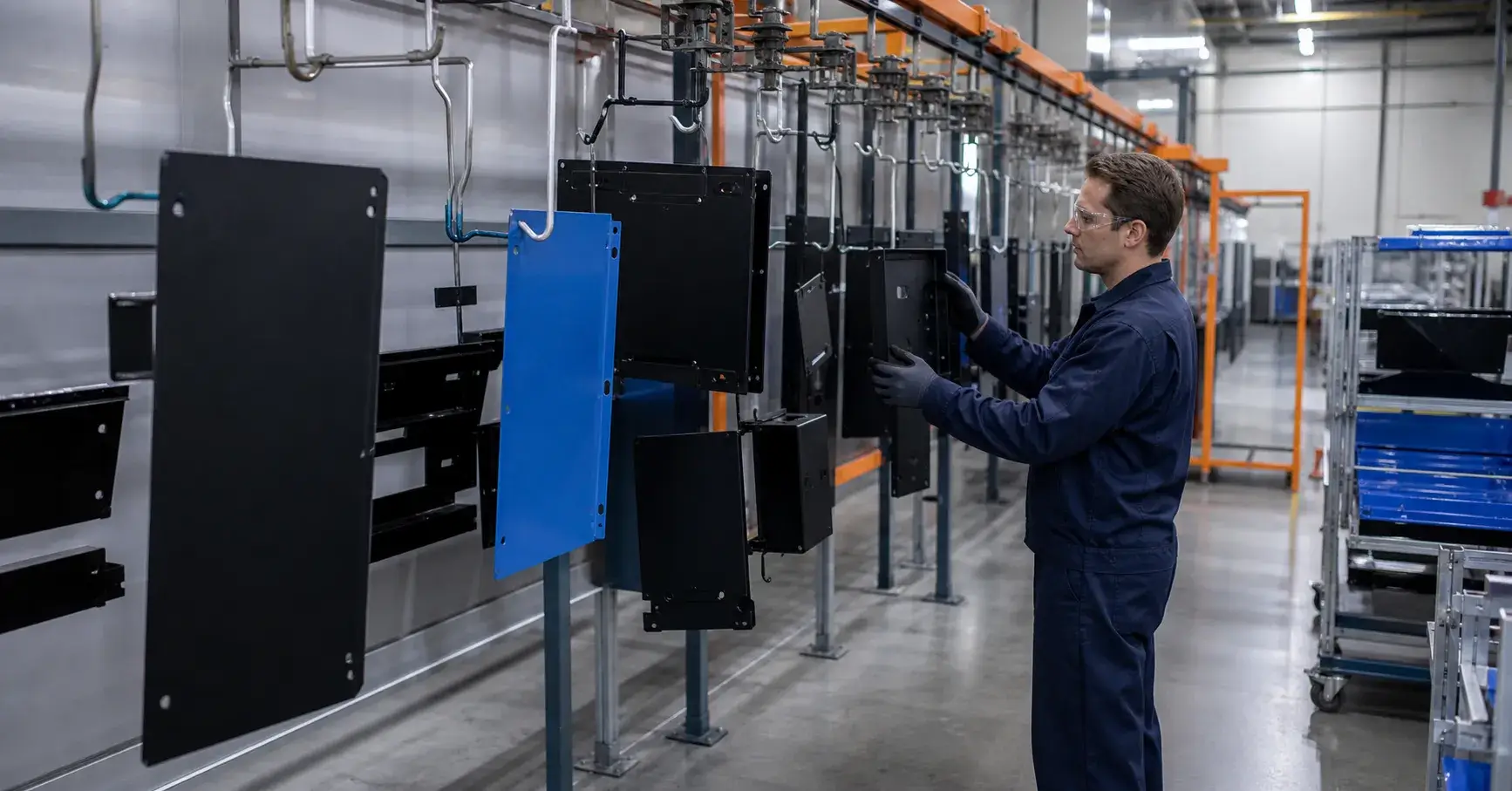

Step 7: Surface Finishing

Surface finishing improves appearance, corrosion resistance, wear resistance, or electrical performance.

Common sheet metal finishes include powder coating, wet painting, anodizing, plating, brushing, polishing, passivation, and galvanizing.

The finish should match the part's environment.

Indoor brackets may need only basic zinc plating or powder coating. Outdoor enclosures may need stronger corrosion protection. Aluminum panels may require anodizing. Stainless steel may need brushing, polishing, or passivation depending on appearance and corrosion needs.

ZAK supports surface finishing as part of the overall fabrication workflow.

This matters because finish planning affects design.

Powder coating adds thickness. Plating can affect threads and tight holes. Cosmetic brushing has a visible grain direction. Masking may be needed for grounding points, threaded areas, weld nuts, or gasket surfaces.

Before production, buyers should define:

• Finish type
• Color or standard
• Gloss level
• Texture
• Coating thickness if critical
• Masking areas
• Cosmetic surface grade
• Salt spray or corrosion requirement if applicable

Do not leave finish requirements vague.

"Black powder coating" may not be enough when the part must match a brand color, outdoor rating, or existing assembly.

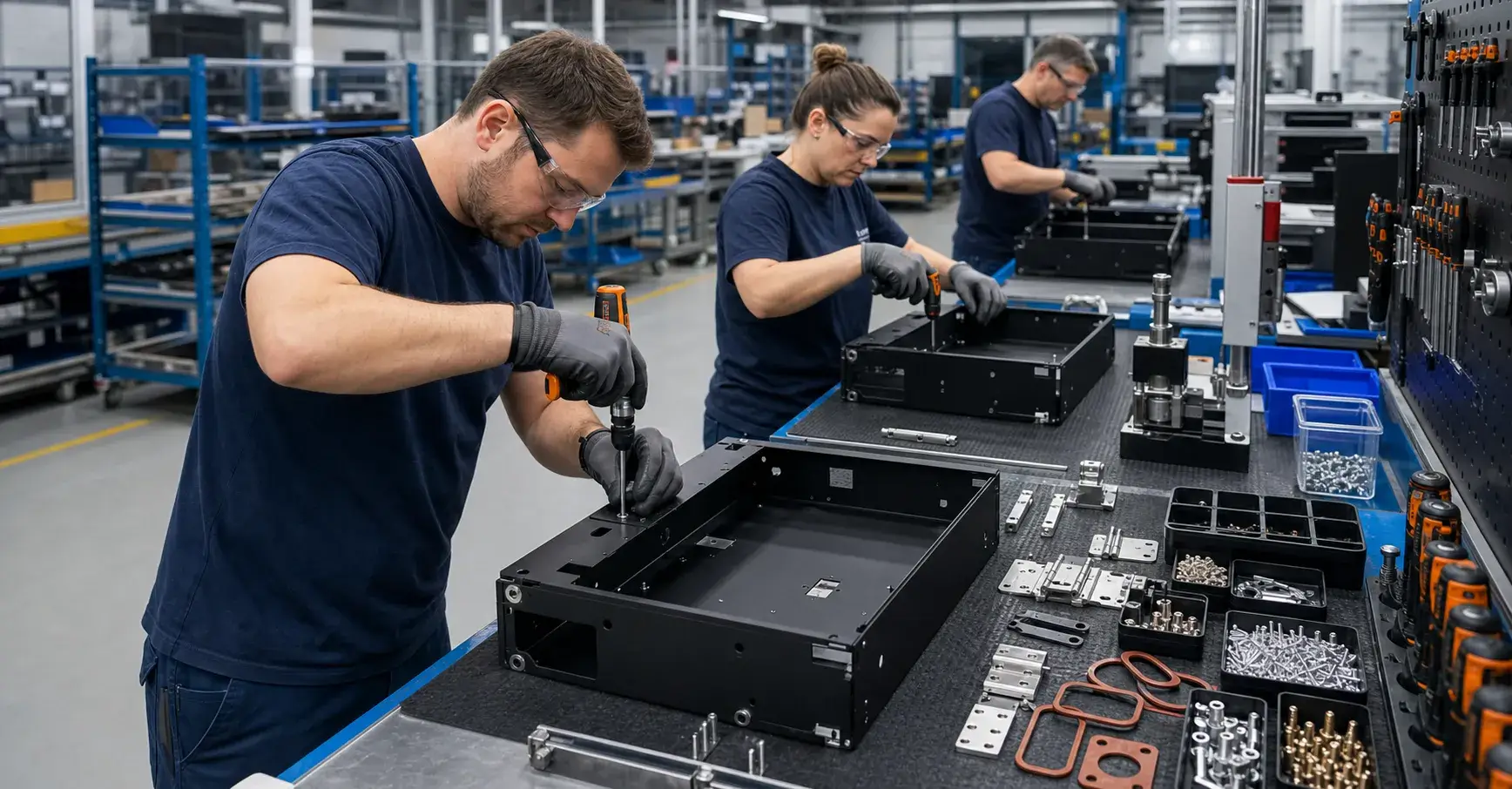

Step 8: Assembly and Hardware Installation

Many fabricated parts are not complete after finishing.

They may need PEM nuts, weld nuts, studs, hinges, latches, handles, gaskets, foam sealing, wiring accessories, labels, or subassembly work.

Assembly planning should happen before finishing.

Some hardware should be installed before coating. Some should be installed after coating to protect threads or functional surfaces.

Gaskets and seals may need clean contact surfaces. Labels may need a specific surface texture.

For OEM projects, buyers should provide the bill of materials and assembly drawing early.

This helps the supplier confirm whether purchased parts are included, supplied by the buyer, or sourced by the factory.

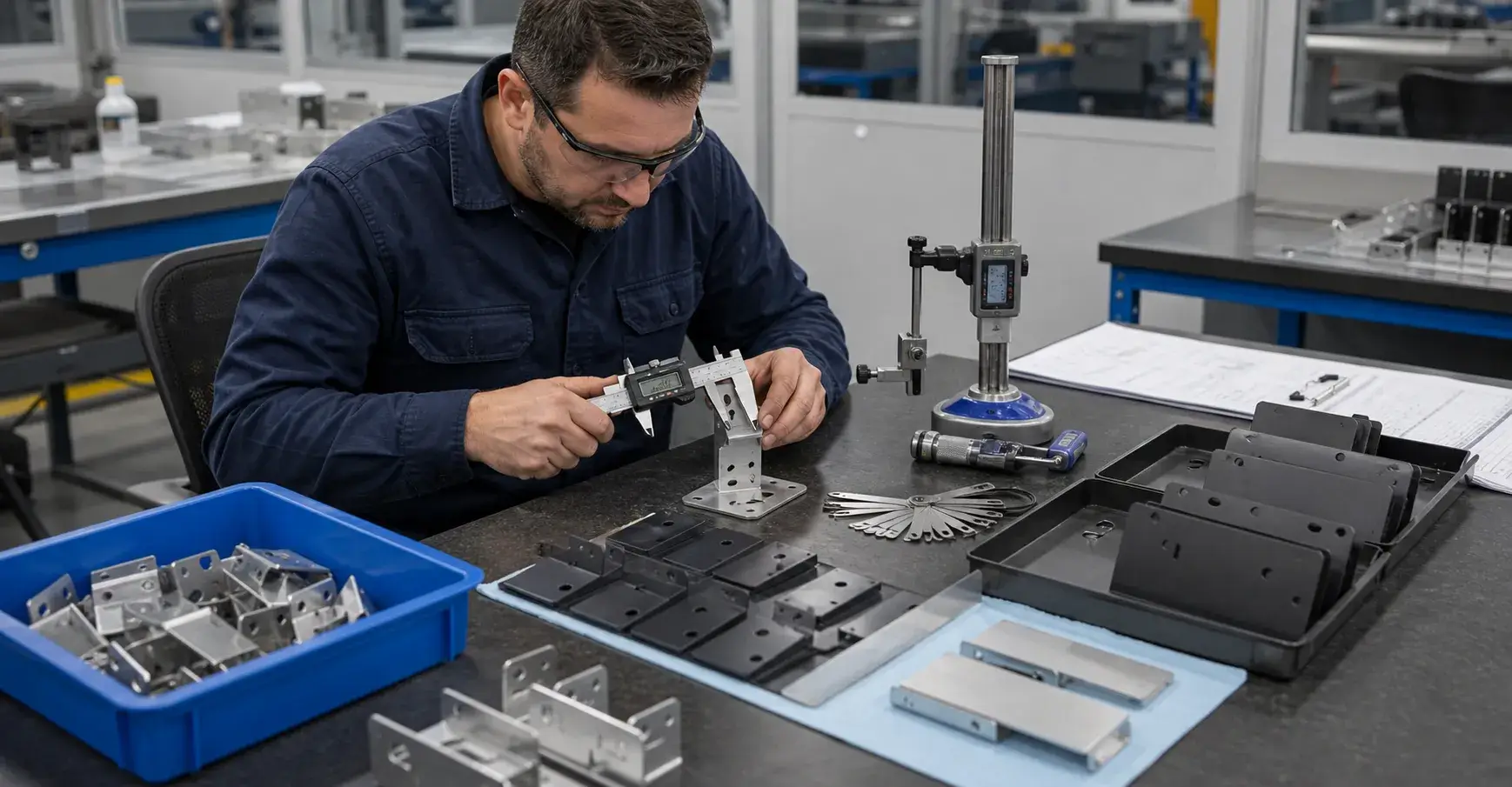

Step 9: Inspection and Quality Control

Inspection confirms that finished parts meet the drawing and purchase requirements.

Quality control in sheet metal fabrication may include first article inspection, in-process checks, final inspection, visual inspection, coating checks, thread checks, assembly checks, and packing checks.

A quality management system such as ISO 9001 helps organizations control processes, records, supplier management, and continual improvement.

The ISO 9000 family[^7] explains the quality management framework behind these controls.

For buyers, this does not replace project-specific inspection requirements. But it does show why controlled procedures and records matter.

Typical inspection points include:

• Overall dimensions
• Hole size and position
• Bend angle
• Flatness
• Weld location and appearance
• Surface scratches or dents
• Coating coverage
• Color and texture
• Thread quality
• Assembly fit
• Quantity and packaging

For critical parts, buyers should define what must be measured and how results should be reported.

A drawing with clear critical-to-quality dimensions is much easier to inspect than a drawing where every dimension looks equally important.

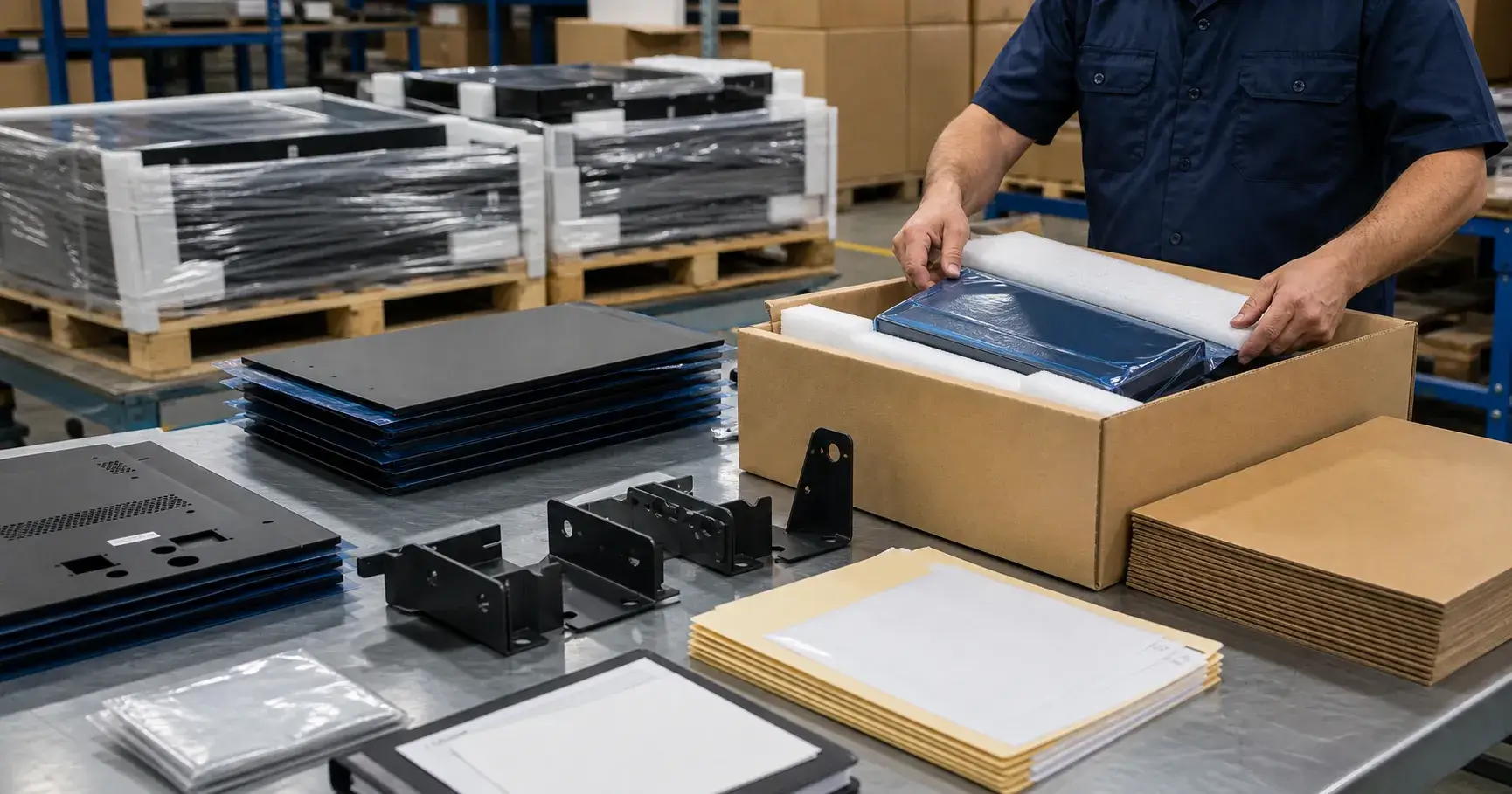

Step 10: Packing, Shipping, and Documentation

Packing protects the value created during production.

Sheet metal parts can be scratched, bent, dented, or rubbed during transport if packaging is not planned well.

Packing methods may include foam, paper, plastic film, cartons, wooden crates, pallets, edge protectors, and part separation.

Cosmetic powder-coated panels need more protection than unfinished internal brackets. Large enclosures may need reinforced packaging and clear handling instructions.

Documentation can include inspection reports, material certificates, finish certificates, packing lists, and photos before shipment.

Buyers should request these documents before production if they are required for internal approval or customer records.

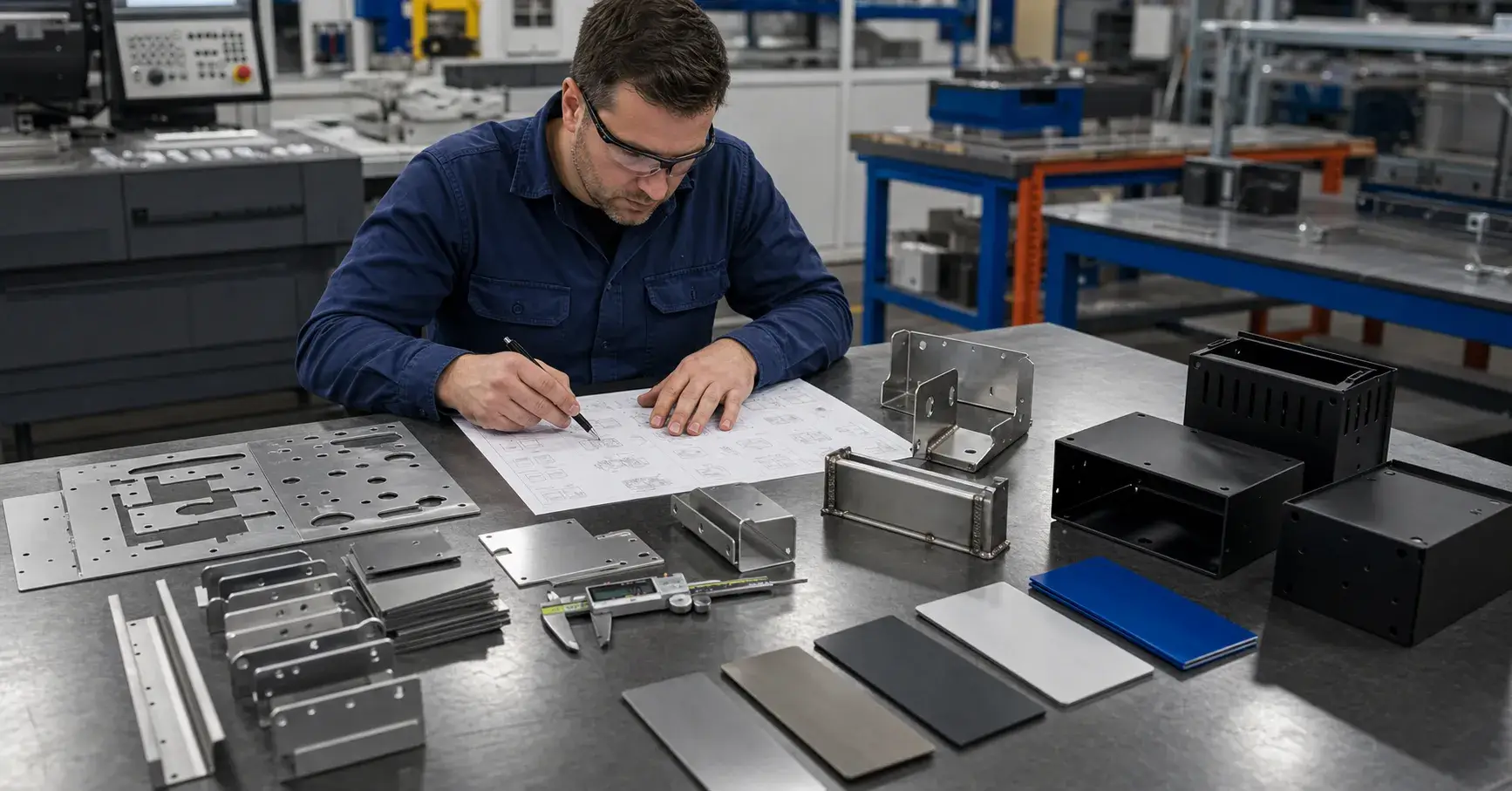

Cost Drivers in the Sheet Metal Fabrication Process

The biggest cost drivers are not always obvious.

Unit price is shaped by material, thickness, cutting time, bend complexity, welding hours, finishing requirements, inspection time, packaging, and quantity.

Important cost drivers include:

• Material grade, thickness, and utilization
• Number of cutting features
• Tight hole or slot requirements
• Number of bends
• Complex bend sequence
• Welding length and grinding time
• Cosmetic surface requirements
• Powder coating color changes
• Hardware and assembly labor
• Inspection documentation
• Packaging requirements
• Batch size and repeat demand

The fastest way to reduce cost is not always changing suppliers.

Often, it is improving the drawing.

A small change to hole placement, bend radius, tolerance, weld length, or finish requirement can reduce production time while keeping the same function.

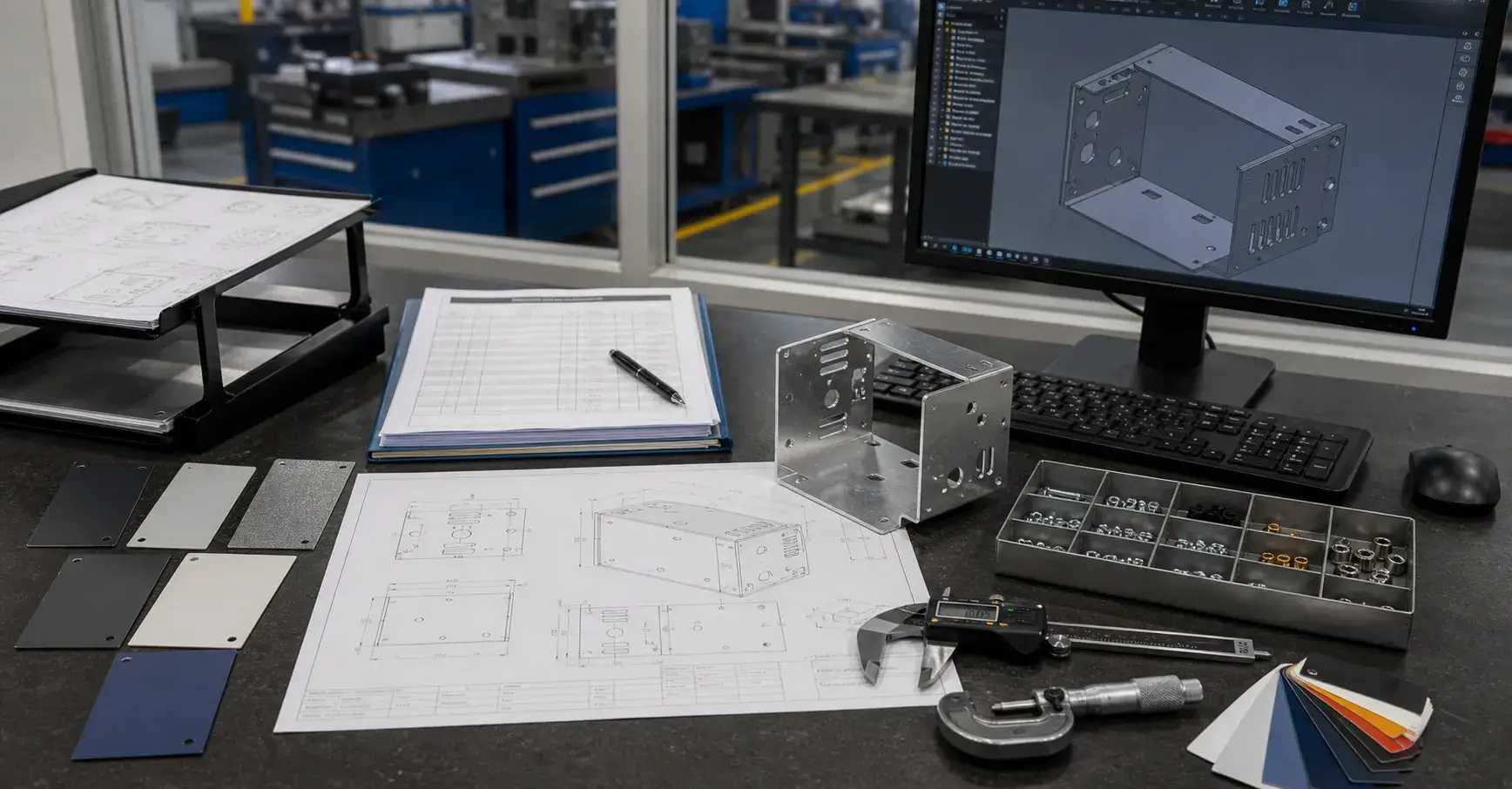

What Buyers Should Prepare Before Requesting a Quote

A complete RFQ helps the supplier quote faster and more accurately.

It also reduces back-and-forth questions.

Prepare these items before sending the project:

• 2D drawing with dimensions and tolerances
• 3D CAD file if available
• Material grade and thickness
• Quantity and expected annual volume
• Surface finish requirement
• Critical dimensions
• Welding or assembly notes
• Hardware list
• Inspection and report requirements
• Packaging requirements
• Target delivery date
• Any sample, prototype, or previous production issue

If you are not sure whether the drawing is ready, our team can review the drawing before quoting.

We can check bend radius, material, tolerance, finish, and process risk so the quote reflects a practical manufacturing route.

Common Mistakes to Avoid

Treating every dimension as critical

This increases cost and inspection burden. Mark only the dimensions that control fit, function, safety, or appearance.

Choosing finish too late

Finish affects masking, threads, coating thickness, appearance, and corrosion resistance. It should be reviewed before production starts.

Ignoring bend relief and hole placement

Features too close to bends can distort. This can cause assembly problems even when the flat pattern looks correct.

Underestimating welding distortion

Thin sheet metal can move during welding. The design should allow practical weld access and heat control.

Sending incomplete files

A DXF without material, thickness, tolerance, finish, and quantity is not enough for accurate quoting.

FAQs About the Sheet Metal Fabrication Process

What is the main sheet metal fabrication process?

The main process usually includes drawing review, material selection, cutting, deburring, bending, welding or joining, surface finishing, inspection, and packing. Not every part needs every step.

Which cutting method is best for sheet metal parts?

Laser cutting is often best for custom sheet metal parts with complex profiles, quick turnaround needs, or changing designs. Punching can be efficient for repeated holes and high-volume work. Shearing is useful for straight cuts. The best method depends on material, thickness, geometry, tolerance, and quantity.

Why does bending affect part accuracy?

Bending affects accuracy because the material stretches and compresses around the bend. Springback, tooling, material thickness, grain direction, and bend radius all influence the final angle and dimensions.

What is the difference between fabrication and stamping?

Sheet metal fabrication is flexible and often uses cutting, bending, welding, and finishing. Stamping uses dedicated tooling to form or cut parts at high speed. Fabrication is often better for prototypes, custom parts, and lower-to-medium volumes. Stamping can be better for very high-volume parts after tooling is justified.

How can I reduce sheet metal fabrication cost?

Use common materials, avoid unnecessary tight tolerances, keep bend radii practical, reduce cosmetic grinding where possible, simplify welds, and define finish requirements clearly. Ask for DFM feedback before finalizing the drawing.

Conclusion

A strong sheet metal fabrication process starts before the first sheet is cut.

The best results come from clear drawings, practical tolerances, suitable material, controlled cutting and bending, clean welding, well-defined finishing, and inspection that matches the part's real function.

For buyers, the goal is not only to get a part made.

The goal is to get repeatable parts that fit, function, look right, and arrive on time.

At ZAK, we review the complete process before production so each step supports the final result.

If you are preparing a new sheet metal part, send the drawing, material, quantity, finish, and critical requirements early.

A careful review at the start can prevent cost, quality, and lead-time problems later.

[^1]: Review Protolabs' sheet metal fabrication service page for a concise overview of common fabricated part types, process options, materials, and finishing choices.
[^2]: Explore Protolabs Network's sheet metal design guide for practical design factors such as bends, reliefs, holes, tolerances, materials, and CAD preparation.
[^3]: Explore TRUMPF's laser cutting overview for a machine-maker explanation of how industrial laser cutting is used in production and why it fits precise sheet processing.
[^4]: Use IPG Photonics' laser materials processing page to understand how laser processes depend on material interaction, power, and application needs.
[^5]: Review TWI's welding guide for a clear technical explanation of welding principles, common process types, and how joining methods differ.
[^6]: Check the American Welding Society standards page when a project requires a formal welding code, industry standard, or qualification reference.
[^7]: Use ISO's ISO 9000 family page to understand the role of quality management systems and why controlled processes and records matter in manufacturing.
